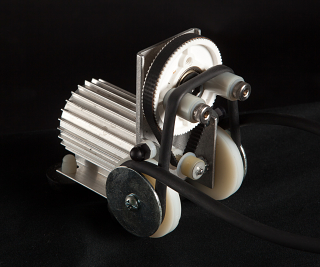

Model 150

Specifications

The Model 150 is perfect for applications that require the periodic cleaning or replacement of the pumping cavity, as it uses and easy-to-change squeeze tube that can be replaced in seconds.
Inlet Requirements	Self-priming
Fluid Types	Mobile or Viscous; Abrasive or Non-abrasive
Dry Run Capability	yes
Submersible?	no
Maximum Pressure	10 PSIG
Minimum Flow Rate	19 ml per min
Maximum Flow Rate	420 ml per min
Fluid Temperatures Supported	Ranges from -75 to 275 degrees F
Mounting Requirements	Horizontal or vertical orientation
Primary Power Source	12V or 24V Brush DC Motor
Alternate Power Source	Two AC to DC converters are available. Single Speed Power Pack 1 (generates 9V DC) Variable Speed Power Pack 2 (generates 3, 4.5, 6, 7.5, 9 or 12V DC) Both are listed in the section below titled Additional Parts for Purchase
Variable Flow Rate?	Enabled with the Variable Speed Power Pack 2
Dimensions (in inches)	3" W x 4" D x 4" H
Weight	14 oz.
Inlet/Outlet Fitting Diameter	¹⁄₁₆ inch to ³⁄₁₆ inch inner diameter
Other Features	Removal/installation takes seconds, as it only requires a few twists of the pumping tube onto 2 “take up cleats.” Includes a standard 3’ long Norprene tube; optional silicone tube is available (for medical applications). Ball bearing construction of the pulley and kneading rollers allow the motor to operate at very low current draw. Reversible DC motor includes an extruded ribbed heat sink.
