Welcome

With over sixty years of experience, the people of Greylor are committed to satisfying our customers’ needs for pumping equipment with reliable, made-to-order solutions.

We custom-design our diverse line of pumps — gear, peristaltic, diaphragm, and magnetic drive — to meet a wide range of industrial and consumer applications.

Please browse our website and contact us with your questions. We welcome the opportunity to fulfill your pumping requirements, large or small.

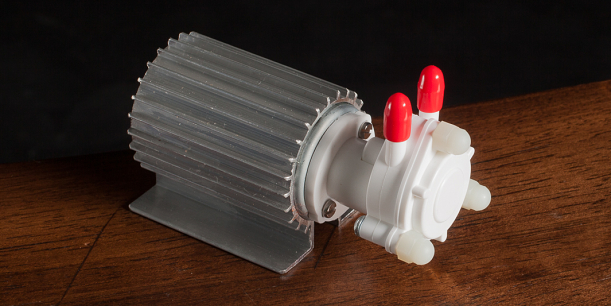

PQ-12/24

PQ-12/24 — Ultra-compact/DC motor

PQ-12/24

Weighing only 10 ounces, the PQ-12/24 gear pump is ultra-compact, economical, versatile, chemically resistant, and performs impressively compared to larger, more expensive gear pumps. It is powered by a DC motor.

  • DC motor available in 12V or 24V
  • Maximum flow rate of 2200 ml/min.
  • Maximum pressure of 20 PSIG

Shop now for the PQ-12/24

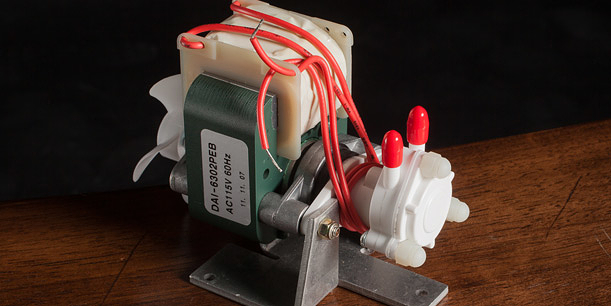

PQM-115/230

PQM-115/230 — Compact/open-type AC motor

PQM-115/230

The PQM-115/230 is for applications that require all the economical and versatile features of the PQ-12/24, but with an AC motor.

  • AC motor available in 115V or 230V
  • Maximum flow rate of 1550 ml/min.
  • Maximum pressure of 20 PSIG

Shop now for the PQM-115/230

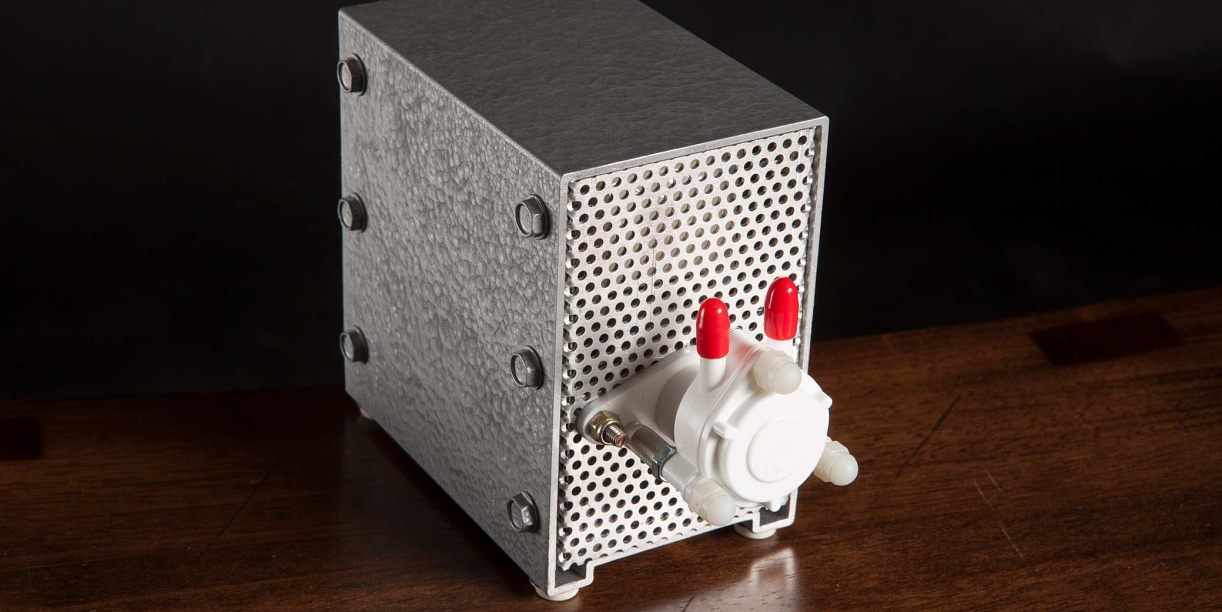

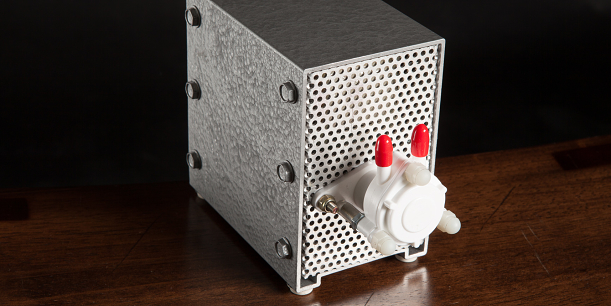

LGP-1

LGP-1 — Enclosed AC motor

LGP-1

The LGP-1 gear pump is similar to the PQM-1; however, it has an enclosed AC motor that enables it to operate in more rugged or risky environments.

  • AC motor available in 115V or 230V
  • Maximum flow rate of 1550 ml/min.
  • Maximum pressure of 20 PSIG

Shop now for the LGP-1

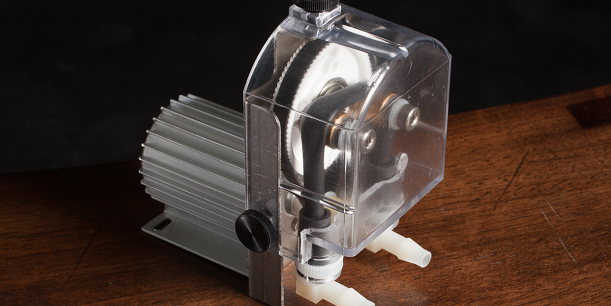

RF-100

RF-100 — Low flow rate/DC motor

RF-100

The RF-100 is an economical, versatile, and low-maintenance peristaltic pump. It offers self-priming capability and uses a Norprene tube for outstanding resistance to extreme temperatures and abrasive chemicals. It is powered by a DC motor.

  • DC motor available in 12V or 24V
  • Maximum flow rate of 1000 ml/min.
  • Maximum pressure of 15 PSIG

Shop now for the RF-100

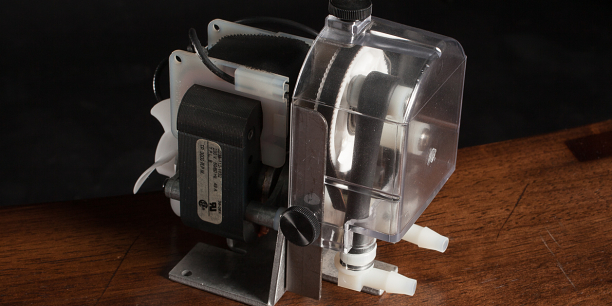

RF-115

RF-115 — Low flow rate/AC motor

RF-115

The RF-115 has all the characteristics of the RF-100, which includes self-priming capability and a Norprene squeeze tube, but uses an AC motor.

  • AC motor available in 115V or 230V
  • Maximum flow rate of 300 ml/min.
  • Maximum pressure of 14 PSIG

Shop now for the RF-115

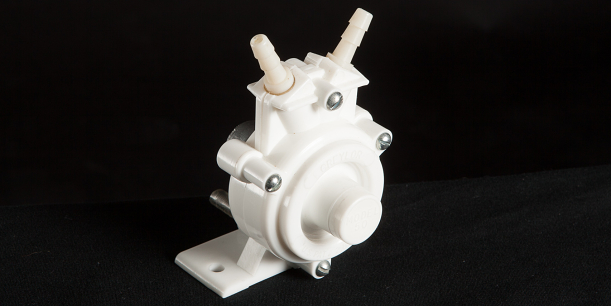

Model 50

Model 50 — Syringe-like flow rate/AC motor

Model 50

The Model 50 is a low volume, high performance, chemical resistant squeeze tube pump. It provides syringe-like flow rates for applications that require around the clock precision accuracy.

  • 115V AC motor
  • Maximum flow rate of 60 ml/hour
  • Maximum pressure of 20 PSIG

Shop now for the Model 50

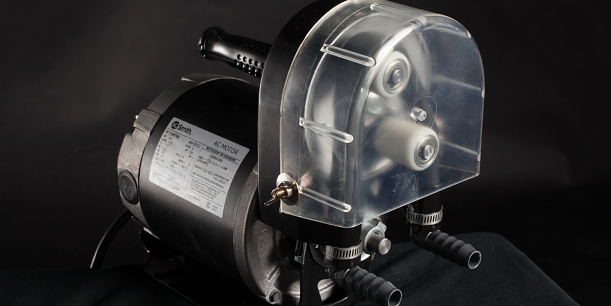

Model 200

Model 200 — High flow rate/AC motor

Model 200

The Model 200 is our largest peristaltic pump that is suitable for high-volume applications that include abrasive, viscous fluids or slurries.

  • AC motor available in 115V or 230V
  • Maximum flow rate of 8.3 liters/min.
  • Maximum pressure of 20 PSIG

Shop now for the Model 200

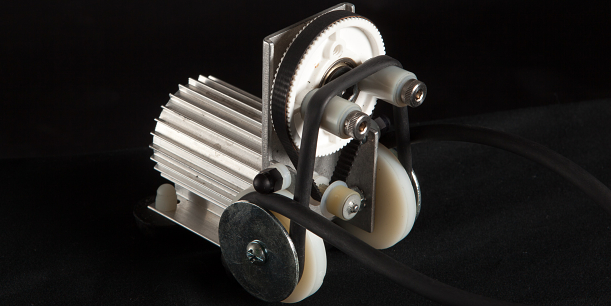

Model 150

Model 150 — Instant tube replacement/DC motor

Model 150

The Model 150 is perfect for applications that require the periodic cleaning or replacement of the pumping cavity, as it uses and easy-to-change squeeze tube that can be replaced in seconds.

  • DC motor available in 12V or 24V
  • Maximum flow rate of 420 ml/min.
  • Maximum pressure of 10 PSIG

Shop now for the Model 150

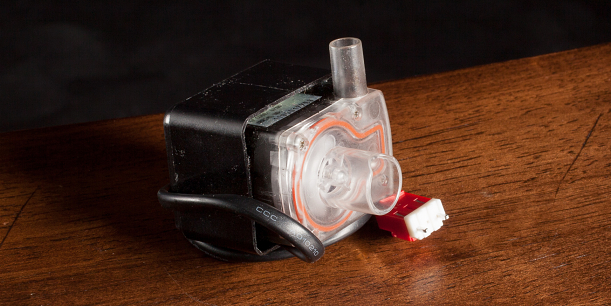

MGBCAC

MGBCAC — Compact/AC motor

MGBCAC

The MGBCAC magnetic drive pump has no seals to wear and consumes only 8 watts. Therefore the expected lifetime is at least 2 years. It is versatile as it can handle a wide variety of chemicals and food products.

  • 220V AC motor
  • Maximum flow rate of 2.5 liters/min.
  • Maximum pressure of 1.5 PSIG

Shop now for the MGBCAC

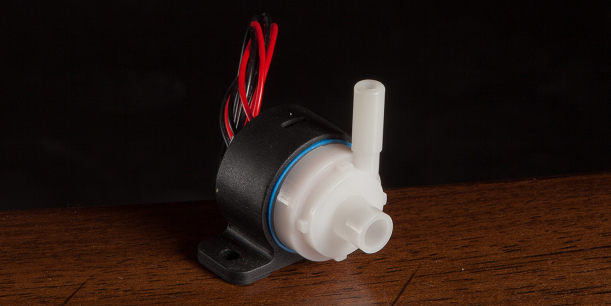

MGBCDC

MGBCDC — Ultra-compact/DC motor

MGBCDC

The MGBCDC magnetic drive pump is amazingly efficient given its size of approximately 1 cubic inch. It is quiet, durable, and has a flow rate that maximizes at 8 feet of head. The MGBCDC can be used for numerous applications as it can handle a wide variety of chemicals and food products.

  • DC motor available in 12V
  • Maximum flow rate of 1300 ml/min.
  • Maximum pressure of 3.4 PSIG

Shop now for the MGBCDC

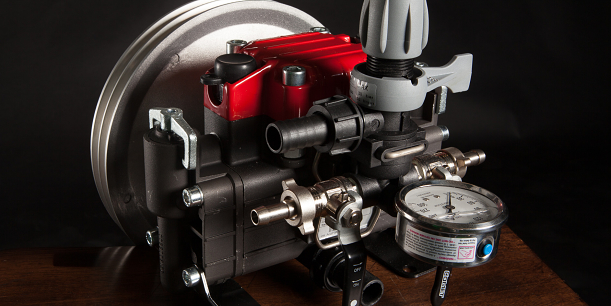

MP-20

MP-20 — Built for rugged industrial applications

MP-20

The MP-20 is designed for rugged industrial applications and will meet or exceed the performance of any diaphragm or piston pump on the market.

  • AC motor is optional; available in 115V or 230V
  • Maximum flow rate of 6 gallons/min.
  • Maximum pressure of 600 PSIG

Shop now for the MP-20

Group
PQ-12/24
PQM-115/230
LGP-1
RF-100
RF-115
Model 50
Model 200
Model 150
MGBCAC
MGBCDC
MP-20



Which Pump is Right for Me?

Flooded Inlet, Mobile Fluid Type

Gear Pumps
Gear Pumps

Each of our gear pumps has a pair of rotating meshed gears in a surrounding chamber with very tight clearance to

  • Create suction at the inlet port.
  • Move the liquid between the teeth of the gears and casing walls.
  • Direct the fluid flow to the outlet.

Mobile Fluid Type, Dry Run, Self-priming

Peristaltic Pumps
Peristaltic Pumps

Our peristaltic pumps, also known as squeeze-tube pumps, propel liquid with rotating rollers, attached to a motor that turns in a circular motion and that

  • Squeezes a tube or hose.
  • Creates a vacuum at the inlet end of the hose.
  • Squeezes the fluid through the hose.
  • Discharges the fluid at the outlet.

Flooded Inlet, Mobile Fluid Type, Submersible

Magnetic Drive Pumps
Magnetic Drive Pumps

The impeller of our magnetic drive pumps

  • Moves fluid through a chamber in which spinning vanes create pressure at the inlet.
  • Generates spin with two sets of adjacent rotating magnets in the shape of cylindrical shells.

The cylindrical shells have two layers

  • The outer layer connected to a power source
  • The inner layer connected to the impeller.

Dry Run, Self-priming, Viscous Fluid Type

Diaphragm Pump
Diaphragm Pump

Each of our diaphragm pumps works with a membrane, connected to a power source on one side and a liquid chamber on the other side.

The power source expands and contracts the diaphragm, which forces fluid into the chamber during expansion and outward during contraction.
