PQM-115/230

Specifications

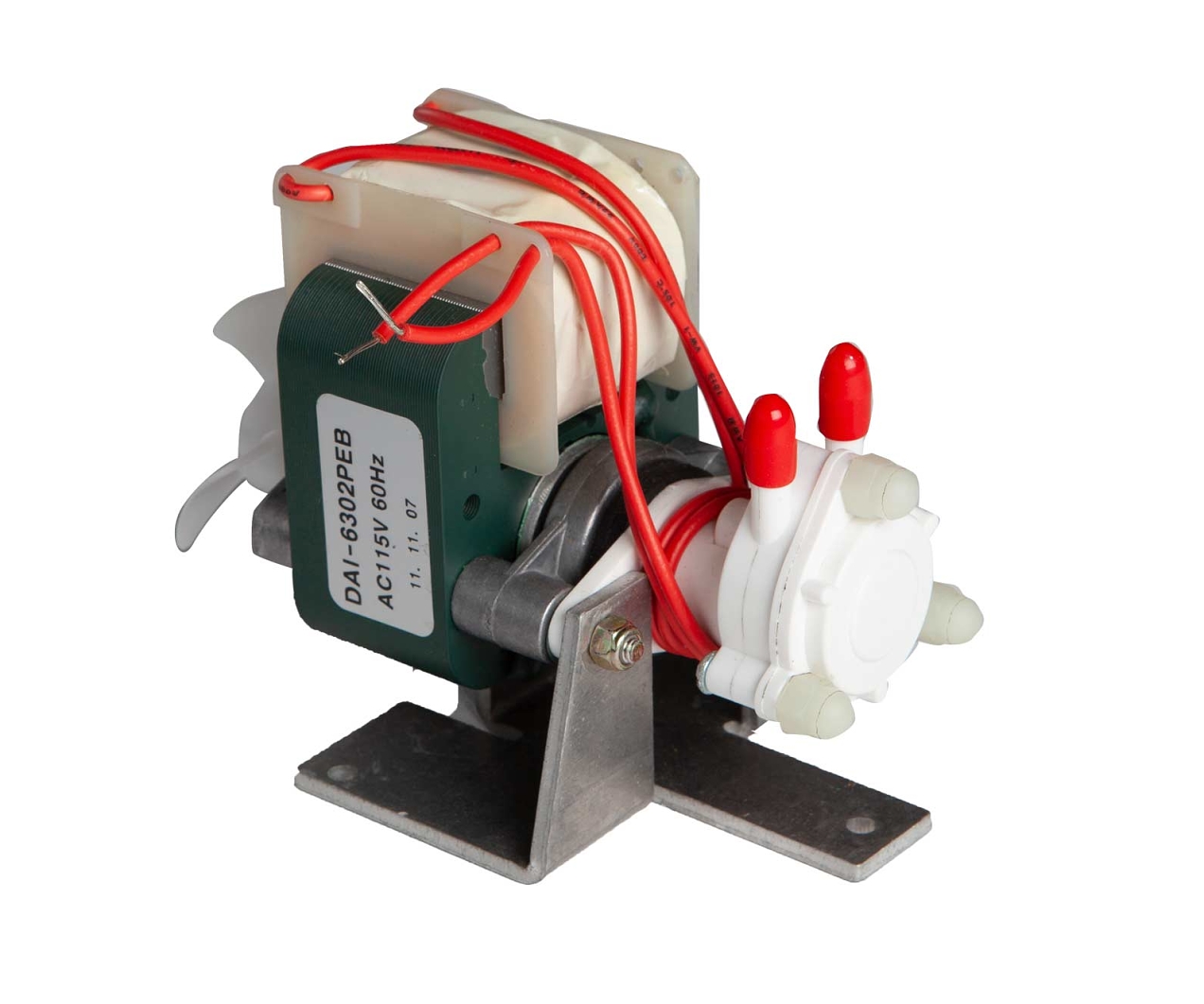

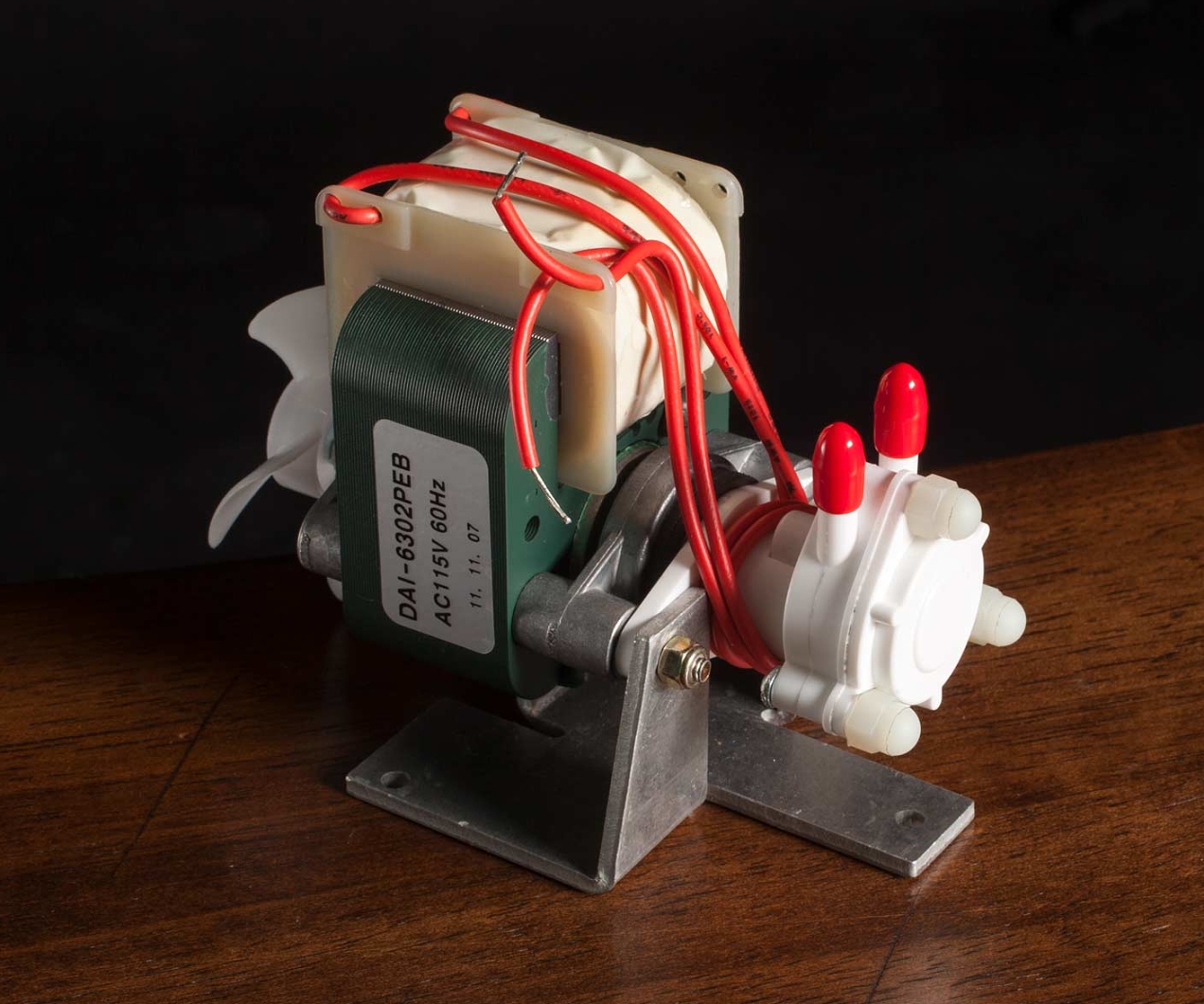

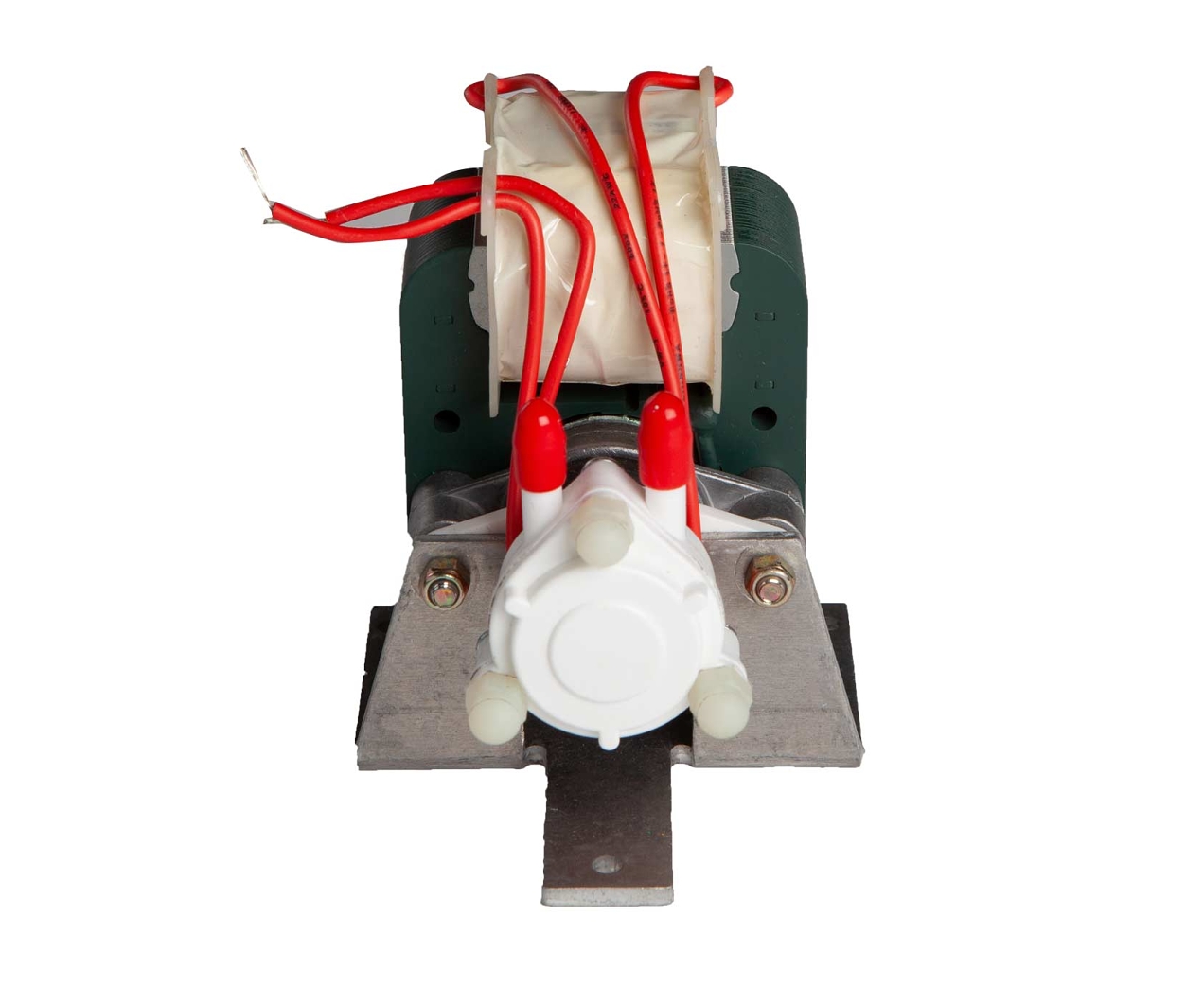

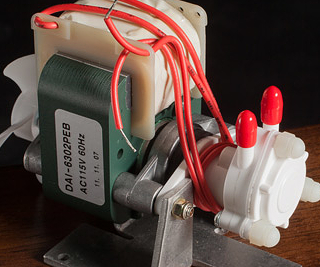

The PQM-1 gear pump is compact, economical, versatile, chemically resistant, and performs impressively compared to larger, more expensive gear pumps. It is powered by an open type AC motor.
Inlet Requirements	Flooded inlet
Fluid Types	Mobile and/or Non-abrasive
Dry Run Capability	no
Submersible?	no
Maximum Pressure	20 PSIG
Maximum Flow Rate	1550 ml per min
Fluid Temperatures Supported	Maximum of 180 degrees F
Mounting Requirements	Horizontal orientation
Power Source	115V or 230V AC motor
Variable Flow Rate?	No
Dimensions (in inches)	3 1/4" W x 5" D x 3 3/4" H
Weight	2 ¹⁄₄ lbs
Inlet/Outlet Fitting Diameter	³⁄₁₆ inch MHB (male hose barb)
Other Features	Materials that come into contact with the pumped liquid are Molded Delrin pump body Delrin gears Stainless steel motor shaft Teflon diaphragm Elastomer lip seal Elastomer lip seals come in Buna-N, AFLAS, EPDM, and Viton. Gears available in HDPE for corrosive chemicals.

Total PSI	FT of Water	OZ/Min	ML/Min
0	0	55	1550
5	12	46	1300
10	23	37	1050
15	35	26	750
20	46	3	70
