Purchase the MGBCDC — Magnetic Drive Pumps


MGBCDC

Checkout Now

Still have questions? Call us at (239) 574-2011, or contact us.

Looking for MGBCDC parts?

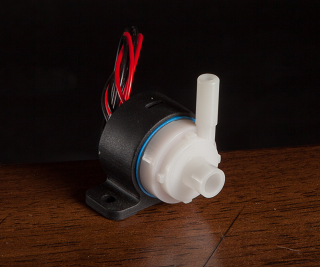

The MGBCDC magnetic drive pump is amazingly efficient given its size of approximately 1 cubic inch. It is quiet, durable, and has a flow rate that maximizes at 8 feet of head. The MGBCDC can be used for numerous applications as it can handle a wide variety of chemicals and food products.

Inlet RequirementsFlooded inlet
Fluid TypesMobile; Abrasive or Non-abrasive
Dry Run Capabilityno
Submersible?yes
Maximum Pressure 3.4 PSIG
Maximum Flow Rate1300 ml per minute
Fluid Temperatures Supported212 degrees F (100C)
Mounting RequirementsHorizontal orientation
Primary Power Source12V Brushless DC motor
Alternate Power Source

Two AC to DC converters are available.

  • Single Speed Power Pack 1 (generates 9V DC)
  • Variable Speed Power Pack 2 (generates 3, 4.5, 6, 7.5, 9 or 12V DC)

Both are listed in the section below titled Additional Parts for Purchase

Variable Flow Rate?Enabled with the Variable Speed Power Pack 2
Dimensions (in inches) 1 3/4" W x 1 1/2" D x 1 3/4" H
Weight2 oz.
Inlet/Outlet Fitting DiameterInlet is 38 inch, Outlet is 14 inch
Other Features
  • Seal-less design means that the fluid travels inside the centrifugal pump and cannot escape.
  • Motor windings are completely insulated from the motor laminations, so there is no ground to contend with.
  • Electric leads are 18” long, and are secured from breaking with a plastic shell over the motor.
  • Materials that come into contact with the pumped liquid are
  •    Pump body: Food grade Polyoxymethylene (POM)
  •    Impeller: Polycrystaline (NdFeB)
  •    O-ring: Food grade silicone

Pump Performance Data

MGBCDC 12V Performance Graph

Additional Parts for Purchase

Use Cases Include

  • Aircraft instruments
  • Carpet/floor cleaners
  • Decorative fountains
  • Dishwashers
  • Food and beverage processors
  • Low pressure chlorinators
  • Pesticide sprayers
  • Vehicle cleaning equipment
  • Water purifiers
