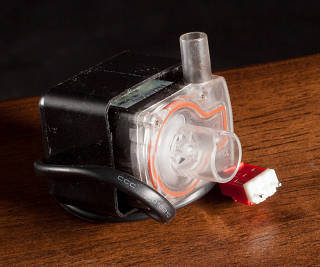

The MGBCAC magnetic drive pump has no seals to wear and consumes only 8 watts. Therefore the expected lifetime is at least 2 years. It is versatile as it can handle a wide variety of chemicals and food products.

Inlet RequirementsFlooded inlet
Fluid TypesMobile; Abrasive or Non-abrasive
Dry Run Capabilityno
Submersible?yes
Maximum Pressure 1.5 PSIG
Maximum Flow Rate2.5 liters per minute
Fluid Temperatures Supported212 degrees F (100C)
Mounting RequirementsHorizontal orientation
Power Source220V AC motor
Variable Flow Rate?No
Dimensions (in inches) 2 1/2" W x 2" D x 2 1/4" H
Weight5 oz.
Inlet/Outlet Fitting DiameterInlet is 516 inch, Outlet is 58 inch
Other Features
  • Seal-less design means that the fluid travels inside the centrifugal pump and cannot escape.
  • Motor windings are completely insulated from the motor laminations, so there is no ground to contend with.
  • Electric leads are 15’ long.
  • Materials that come into contact with the pumped liquid are
  •    Pump body: Food grade Polyoxymethylene (POM)
  •    Impeller: Polycrystaline (NdFeB)
  •    O-ring: Food grade silocone

Pump Performance Data

MGBCAC 115V Performance Graph

Use Cases Include

  • Aircraft instruments
  • Carpet/floor cleaners
  • Decorative fountains
  • Dishwashers
  • Food and beverage processors
  • Low pressure chlorinators
  • Pesticide sprayers
  • Vehicle cleaning equipment
  • Water purifiers
